Conocé el producto

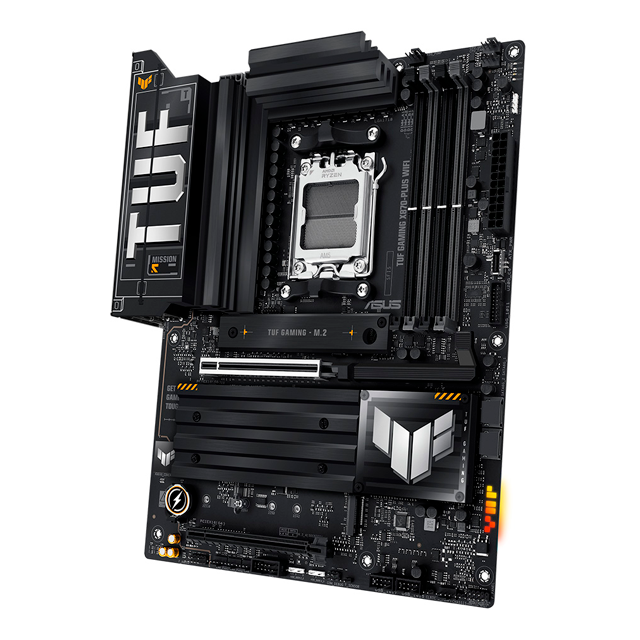

- Model TUF GAMING X870-PLUS WIFI News Updates Please visit our GLOBAL website to check and download the latest updates. CPU AMD Socket AM5 for AMD Ryzen™ 9000 8000 7000 Series Desktop Processorsx x Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD X870 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 8000 7000 Series Processors ECC and Non-ECC, Un-buffered DIMMx Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) x Adjustments will be made based on the specifications of mass-produced memory products available on the market. x Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. x Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMI™ portxx 2 x USB4® (40Gbps) ports support USB Type-C® display outputsxxx x Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. xx Supports 4K@60Hz as specified in HDMI 2.1. xxx Supports max. 4K@60Hz as specified in DisplayPort 1.4a. xxxx VGA resolution support depends on processors or graphic cards resolution. Expansion Slots AMD Ryzen™ 9000 7000 Series Desktop Processorsx 1 x PCIe 5.0 x16 slot (supports x16 mode)xx AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)xxx AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)xxxx x Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). xx The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. xxx Specifications vary by CPU types. xxxx The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s portsx AMD Ryzen™ 9000 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)xx AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)xxx 2 x SATA 6Gb/s ports x AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. xx The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. xxx The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless Bluetooth Wi-Fi 7x 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency bandxx Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4xxx xWi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendors website for details. xx Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. xxx The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications. USB Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®)x 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)xx 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports x USB Type-C® power delivery output: max. 5V/3A xx USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playbackx Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit x Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports 2 x USB4® (40Gbps) (2 x USB Type-C®) ports 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital
