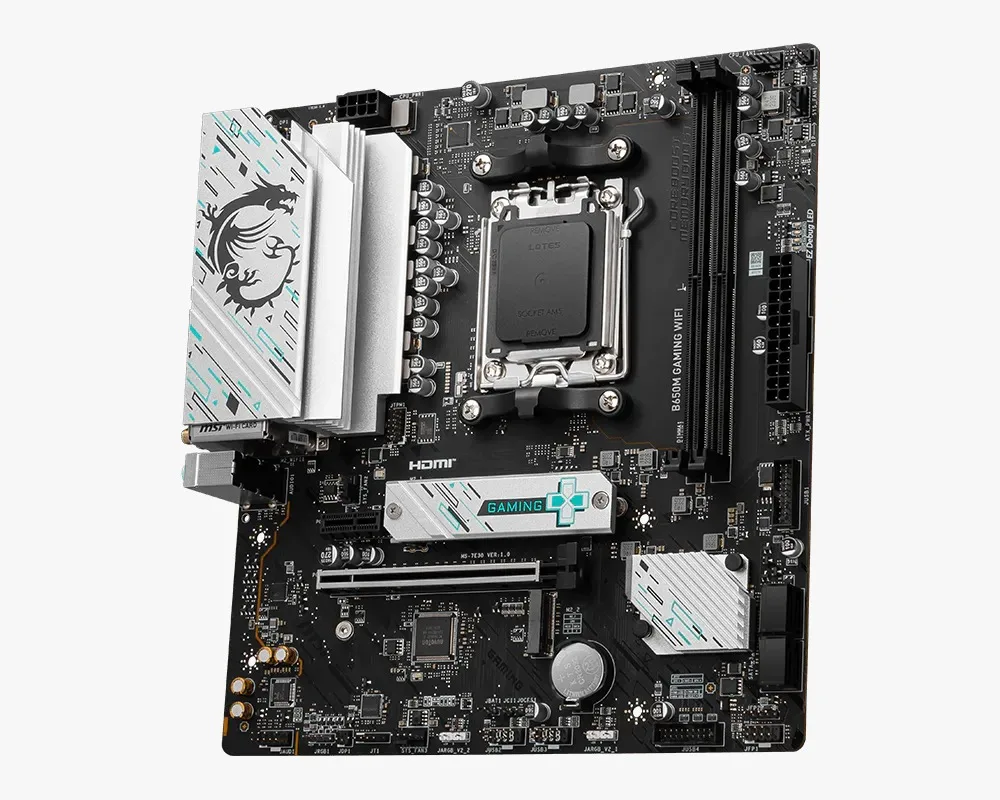

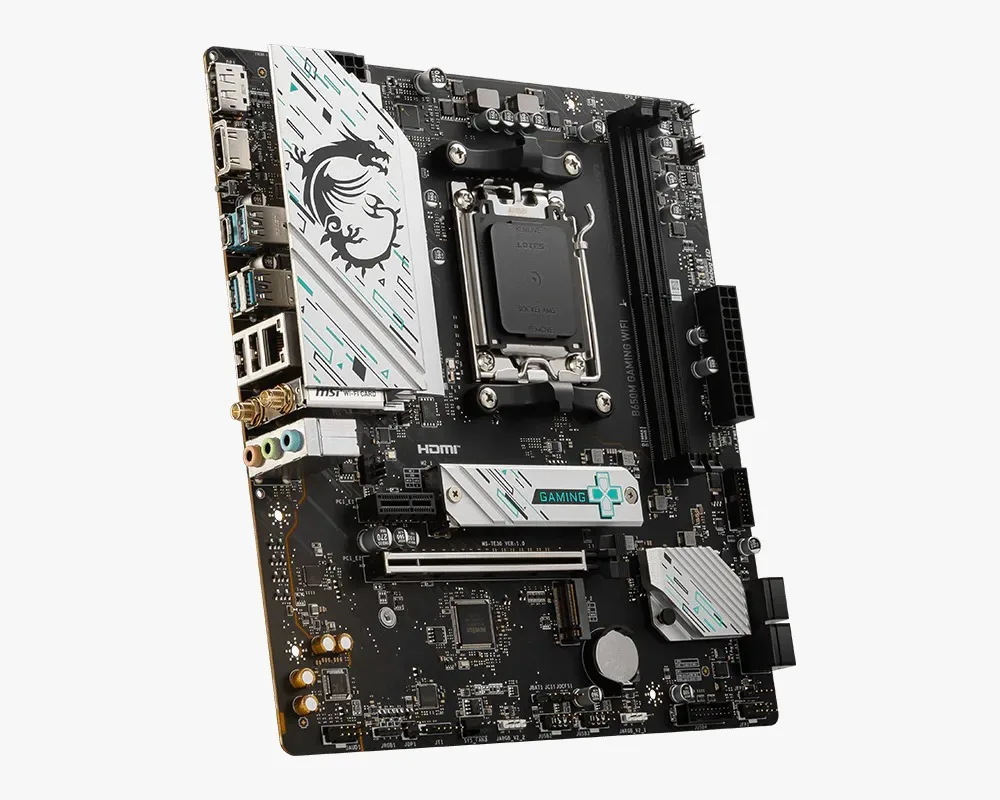

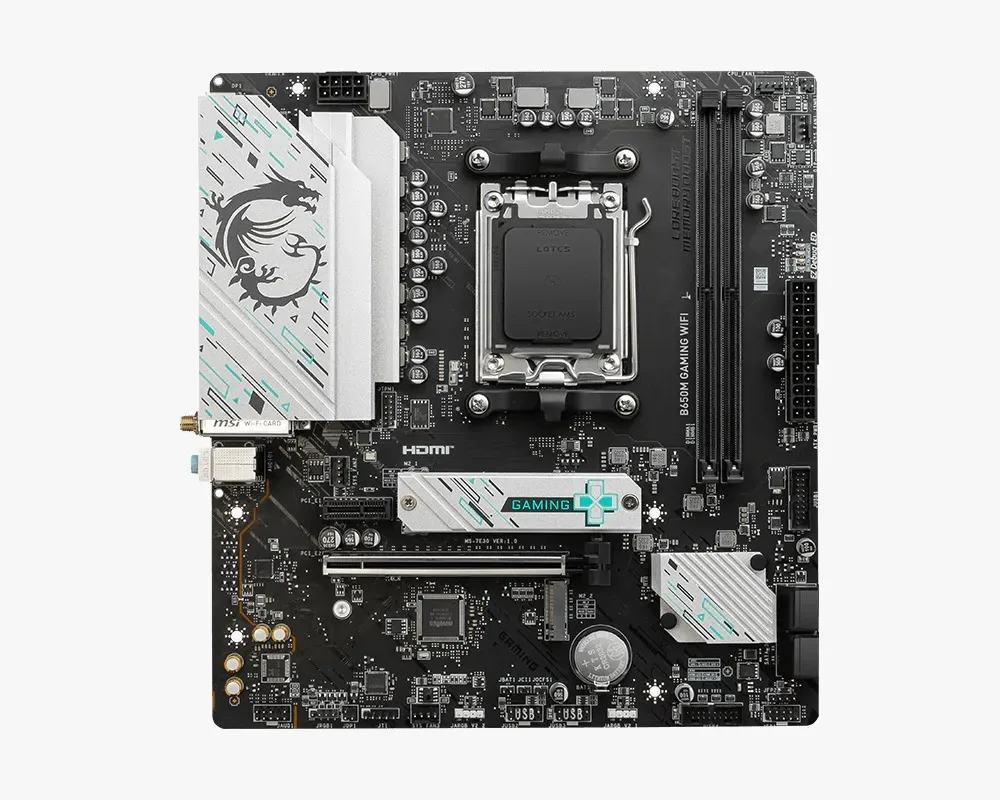

Motherboard Amd MSI B650M Gaming WIFI AM5

- Chipset AMD B650 CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Memory 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO Onboard Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hzx 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hzx xAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 1x PCI-E x16 slot (Qty) Supports x16/x1 Supports x16/x4 (For Ryzen 9000/ 7000 Series processors) Supports x8/x4 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports x4/x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Storage 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G (Qty) The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) LAN Realtek RTL8125BG 2.5Gbps LAN Internal IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports WIRELESS LAN BLUETOOTH Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHzx bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3xx
